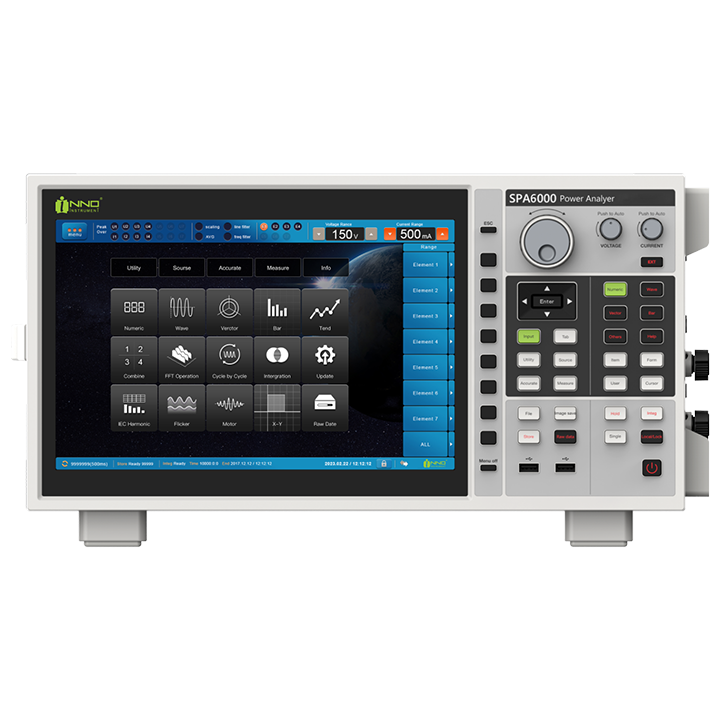

SPA6000 Multi Power Analyzer
Price
$0.00
High-precision power analyzer for enterprise-level R&D and testing. We offer modularized solutions designed for accurate electrical parameter measurement, comprehensive analysis, and functional performance verification. SPA6000 Power Analyzer provides robust support for enhancing product quality and efficiency.
Quantity
Delivery time upon request
Features
- Highest measurement accuracy: ±(0.01% of reading + 0.02% of range)
- 4 power channels and 2 motor channels
- Maximum measurement voltage of 1,000V
- Supporting effortless board side-on plug-and-play
- Incorporating a sensor power supply unit within a power module
- Sampling rate up to 2M/s, ensuring more accurate data recording
- High-resolution A/D conversion and multi-channel D/A output
- 12.1” HD LCD touch screen equipped with a user-friendly UI
More Features
- Multiple computing functions - The SPA6000 Power Analyzer provides a wide range of computation functions, including integration and Fast Fourier Transform (FFT). It excels in swiftly and automatically switching the measurement range to prevent measurement errors resulting from significant variations in the input signal coupled with improper measurement range during extended integral calculations.
- Harmonic analysis - SPA6000 Power Analyzer can conduct harmonic analysis and measurement on 4 power channels and select different PLL sources, greatly enhancing harmonic measurement efficiency in fields such as inverter motors, robotics, lighting, and more. With the capacity to measure harmonics up to the 500th order, it ensures comprehensive and accurate harmonic analysis.
- Dual-motor measurement - SPA6000 Power Analyzer offers a dual-motor measurement channel capable of accommodating access requirements for torque sensors, whether in analog or impulse signal form. This channel enables the measurement of critical parameters such as motor speed, direction, torque, efficiency, slip, electrical angle, synchronous speed, mechanical power, and other parameters. Furthermore, SPA6000 Power Analyzer provides both single-motor measurement mode (4 terminals) and dual-motor measurement mode, making it well-suited for multi-motor applications like electric vehicles (EV) and robotics.
- Parameter configuration saving and loading - SPA6000 Power Analyzer enables users to save configuration files, facilitating the swift loading of previously saved configurations. This feature minimizes the need for redundant parameter configuration when encountering similar measurement conditions in the future.
- Phase compensation - SPA6000 Power Analyzer offers phase compensation for current with a 0.01° resolution, enhancing measurement accuracy, particularly for power measurements with high frequencies or low power factors.
- PA Viewer - PA Viewer is a PC application software that allows users to connect their devices to a PC through a network interface, enabling remote control from the PC. Measured data, waveforms, trends, and bar graphs can be conveniently displayed on the PC's monitor, providing a visual representation of the information.
